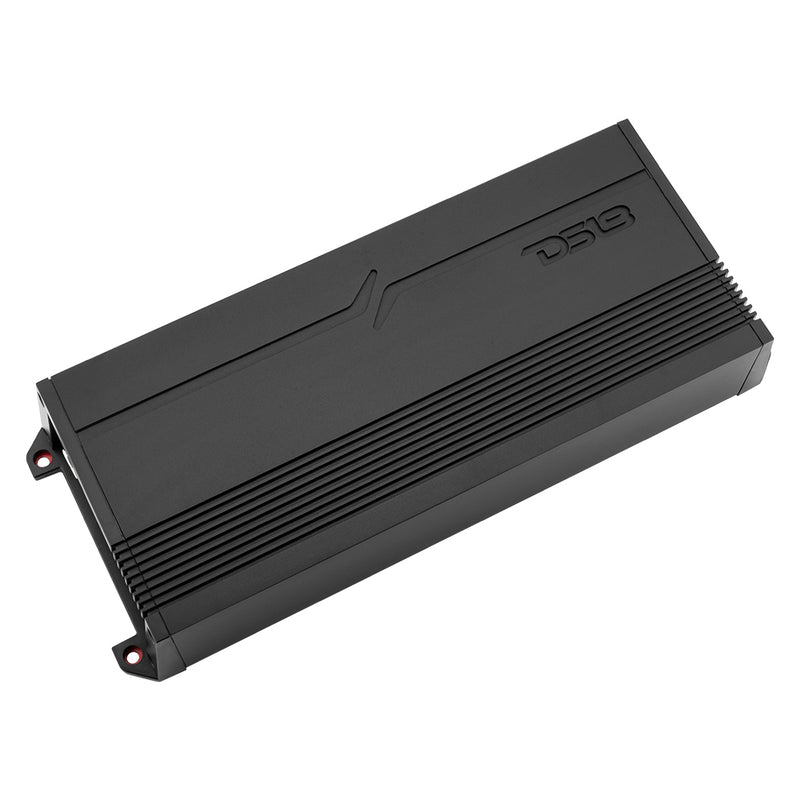

DS18 3600.1 GEN-X Class D 1-Channel Amplifier | 1200W RMS @ 1-Ohm

DS18 3600.1 GEN-X Class D 1-channel monoblock subwoofer amplifier delivering 1200W RMS at 1 Ohm, with 3600W peak power.

Power

• Total Watts (Peak): 3600W
• RMS Power @ 4 Ohm: 500W
• RMS Power @ 2 Ohm: 900W
• RMS Power @ 1 Ohm: 1200W
• RMS Power @ 4 Ohm Bridged: N/A

Audio

• Frequency Response: 10Hz–500Hz
• Signal-to-Noise Ratio: >93dB
• Efficiency @ 4 Ohm: 90%
• Damping Factor: 45
• Input Impedance: 22K Ohm
• Channel Separation: N/A
• Total Harmonic Distortion (THD): 0.0014%

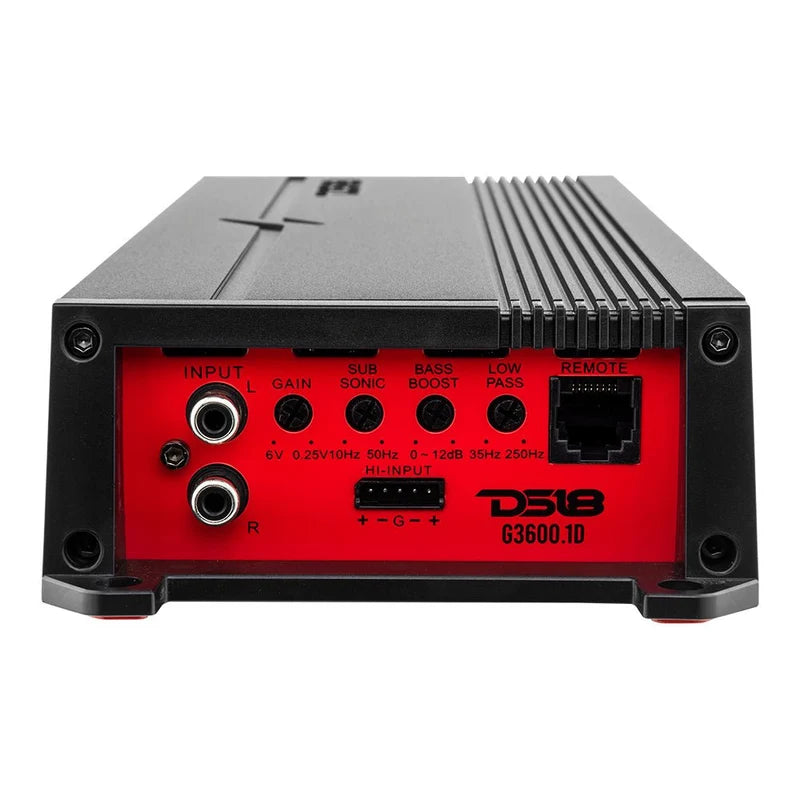

• Low-Level Input Range: 0.25–6V
• High-Level Input: Yes
• Selectable Crossover: Fixed LPF
• Crossover Filter Range: 35Hz–250Hz
• Bass Boost Range: 0–12dB
• Bass Boost Frequency: Fixed @ 45Hz
• Infrasonic Filter: 10Hz–50Hz
• Phase Selector: No

Features

• Amplifier Class: Digital Class D
• Amplifier Type: Monoblock Subwoofer Amplifier
• Number of Channels: 1CH
• Minimum Impedance: 1 Ohm

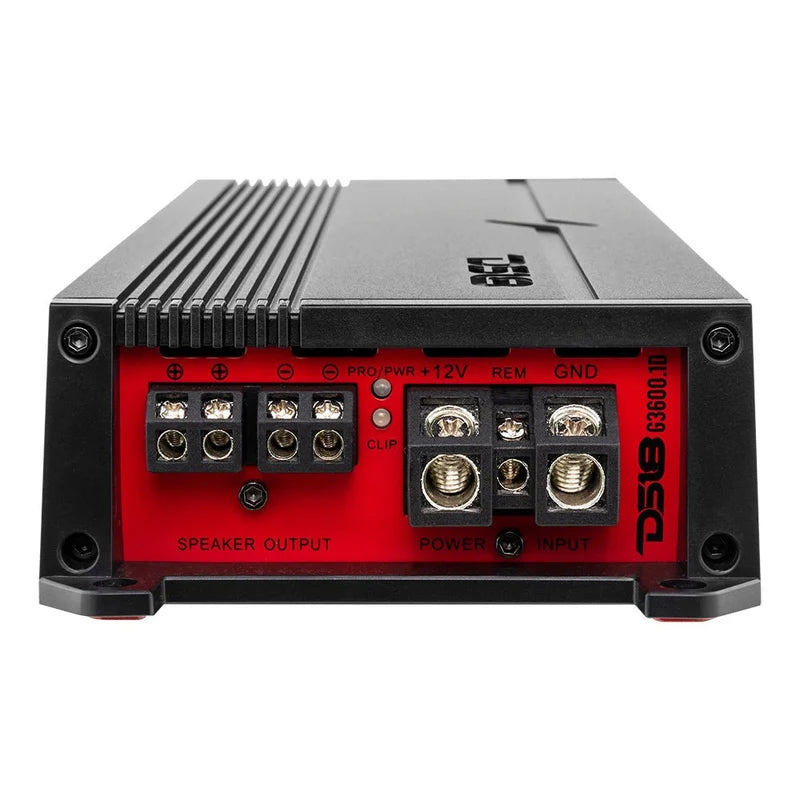

• LED Indicators: Power / Protection / Clip
• Power Input Terminal Size: 4ga
• Fuse Size: 120A

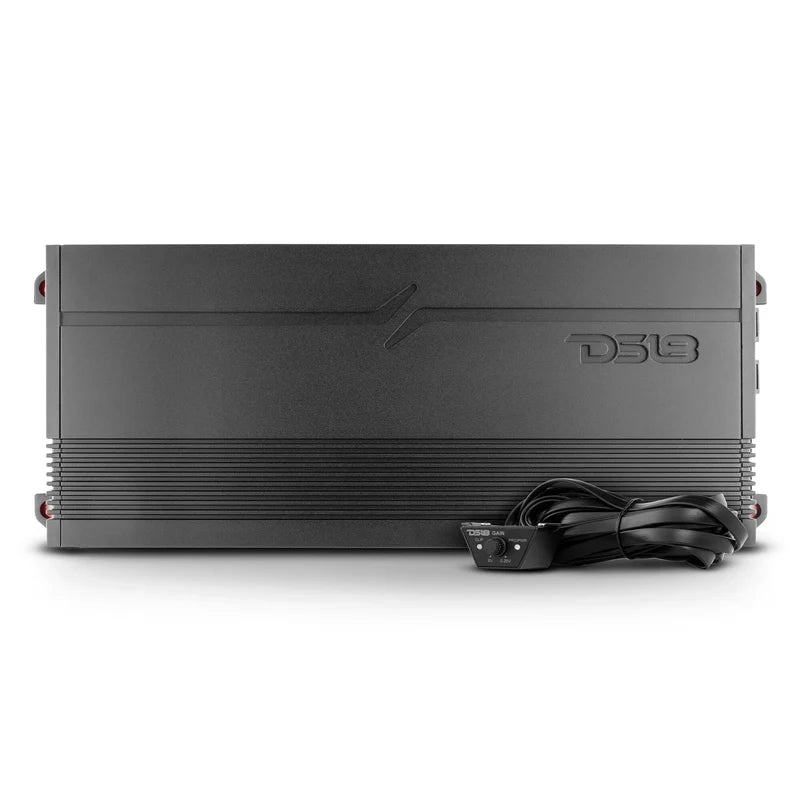

• Remote Level Control: Yes
• Cooling Fan: No
• Voltmeter: No
• Thermal Protection: Yes
• Overload Protection: No
• DC Output Protection: Yes
• Short-Circuit Output Protection: Yes
• Voltage Input Protection: Yes
• Clipping Protection: Yes
• Body Color / Finish: Matte Black
• Input Selector: No
• Compact Size for Easy Installation in Various Applications: Yes
• Stable/Reliable Two- or Four-Layer Trace PCB Design: Yes
• Surface-Mount Component Technology: Yes
• Quality Control Verification Using Audio Precision Instruments: Yes

Measurements

• Overall Length: 12" / 305mm
• Overall Width: 4.72" / 120mm
• Overall Height: 1.96" / 50mm
• Heatsink Length: 10.15" / 258mm
• Gross Single Unit Weight: 2kg
